Cat 6A or category 6A cabling

The 10GPlus cabling system fully supports 10GBASE-T applications, offers superior performance, and includes user-friendly installation features for simple and speedy deployment.

The 10GPlus System is a feature-rich solution delivering:

Complete end-to-end solutions in shielded and unshielded options
Protection from alien crosstalk and external electromagnetic interference in the shielded system
Performance levels designed to meet and exceed ISO/IEC 11801 Class Ea and ANSI/TIA-568-C.2 Cat 6A
LSA-style and tool-free options available for 10GPlus snap-in jacks
Limited 25-Year System Warranty to protect your investment and provide peace of mind.

APPLICATION Leviton Category 6A U/FTP cables exceed Category 6A performance standards. They are specified to 500MHz and are suitable for use in all Class EA structured wiring cable systems. Category 6A U/FTP cable supports 10 Gigabit Ethernet, Gigabit Ethernet, Power over Ethernet, voice and broadband video transmissions at frequencies up to 500MHz.

FEATURES AND BENEFITS

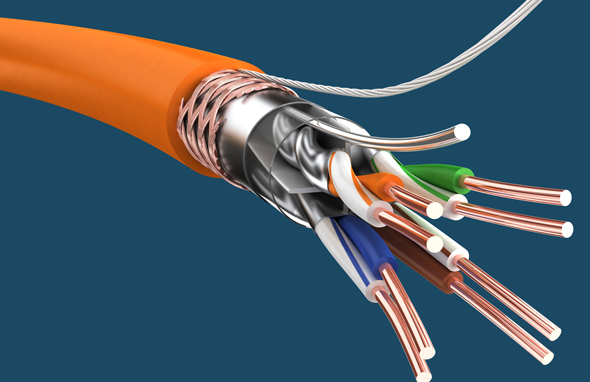

• 23 AWG solid annealed copper wire • 4 twisted pairs individually screened and cabled together – providing EMI immunity • Enhanced HFFR-LS* material enables cable to meet the requirements of the Construction Products Regulation (CPR) EuroClass Cca • Included in the Leviton Limited 25-Year System Warranty when used in conjunction with Leviton copper connectivity. System warranties are available for qualified projects installed by certified contractors

APPLICATION Leviton Category 6A U/FTP cables exceed Category 6A performance standards. They are specified to 500MHz and are suitable for use in all Class EA structured wiring cable systems. Category 6A U/FTP cable supports 10 Gigabit Ethernet, Gigabit Ethernet, Power over Ethernet, voice and broadband video transmissions at frequencies up to 500MHz.

FEATURES AND BENEFITS

• 23 AWG solid annealed copper wire • 4 twisted pairs individually screened and cabled together – providing EMI immunity • Enhanced HFFR-LS* material enables cable to meet the requirements of the Construction Products Regulation (CPR) EuroClass Cca • Included in the Leviton Limited 25-Year System Warranty when used in conjunction with Leviton copper connectivity. System warranties are available for qualified projects installed by certified contractors.

STANDARDS • Designed and constructed to give optimum electrical performance to the following standards: • ISO/IEC 11801 Class EA, IEC 61156-5 • EN50173-1 and EN 50288-10-1 • ANSI/TIA 568.2-D • Supports 10GBASE-T • Meets the design requirements of 802.11ac wireless • Recommended for PoE standards: IEEE 802.3af, 802.3at, 802.3bt, Cisco UPoE, and Power over HDBaseT™ (PoH) up to 100 watts.
